EM-12 : Extruded Backdraft Damper, Horizontal Mount
EM-12 : Extruded Backdraft Damper, Horizontal Mount

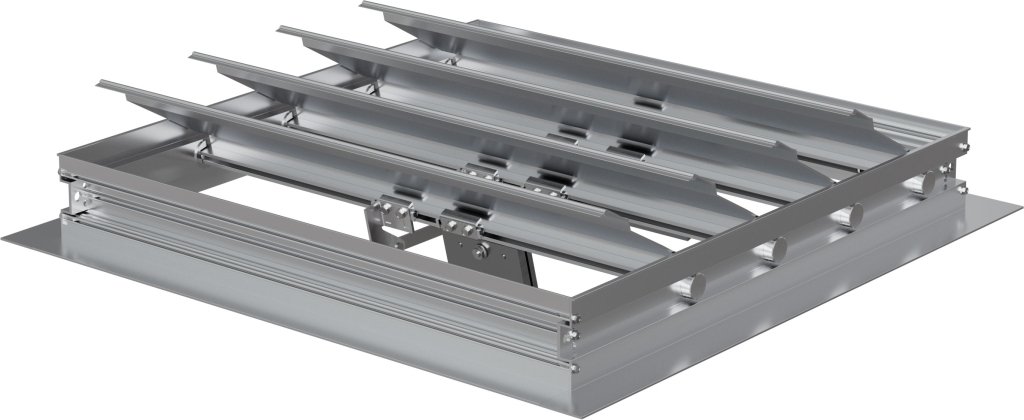

Model EM-12 is a horizontally mounted aluminum backdraft damper designed to permit vertical upward airflow while preventing reverse (downward) flow when the fan is off. The blades open under system pressure differential and close by gravity, providing dependable, power-free backdraft protection. An intake-side flange allows secure attachment, and adjustable counterbalance weights assist blade opening.
Product Highlights
| Airflow Direction |
Vertical Up
|
|---|---|
| Blade Material |
Aluminum
|
| Frame Material |
Aluminum
|
| Maximum Pressure Rating (in. wg.) |
10
|
| Maximum Velocity (fpm) |
3,500
|
| Mounting Orientation |
Horizontal
|
Request Drawing
