EM-30 : Extruded Backdraft Damper, Vertical Mount
EM-30 : Extruded Backdraft Damper, Vertical Mount

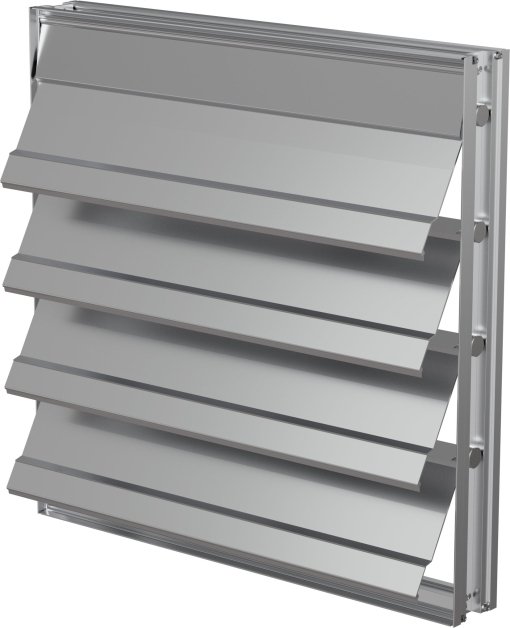

Model EM-30 is a vertically mounted aluminum backdraft damper designed for horizontal airflow applications. The blades open under system pressure differential and close by gravity, providing reliable, power-free backdraft protection. Featuring a flangeless configuration for installation flexibility, the EM-30 also includes adjustable counterbalance weights to assist blade opening.
Product Highlights
| Airflow Direction |
Horizontal
|
|---|---|
| Blade Material |
Aluminum
|
| Frame Material |
Aluminum
|
| Maximum Pressure Rating (in. wg.) |
10
|
| Maximum Velocity (fpm) |
3,500
|
| Mounting Orientation |
Vertical
|
