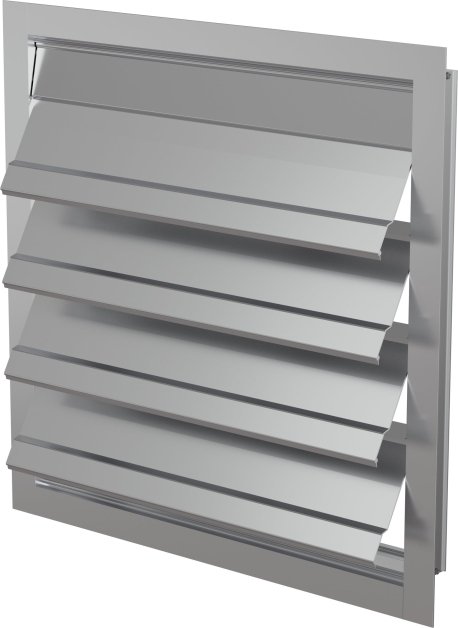

GM-31 : Backdraft Damper, Vertical Mount
GM-31 : Backdraft Damper, Vertical Mount
The GM-31 backdraft damper is designed for horizontal airflow applications, delivering dependable protection against reverse airflow in HVAC systems. The gravity-operated blades open in response to differential air pressure, with adjustable counterbalance weights to fine-tune opening pressure and minimize pressure drop. When airflow stops, the damper closes by gravity. A discharge-side flange provides secure attachment, and adjustable counterbalance weights assist blade opening.
Product Highlights
| Airflow Direction |
Horizontal
|
|---|---|
| Blade Material |
Aluminum
|
| Frame Material |
Galvanized Steel
|
| Maximum Pressure Rating (in. wg.) |
10
|
| Maximum Velocity (fpm) |
3,500
|
| Mounting Orientation |
Vertical
|
