SEBR-10 : Severe Environment Barometric Relief Damper
SEBR-10 : Severe Environment Barometric Relief Damper

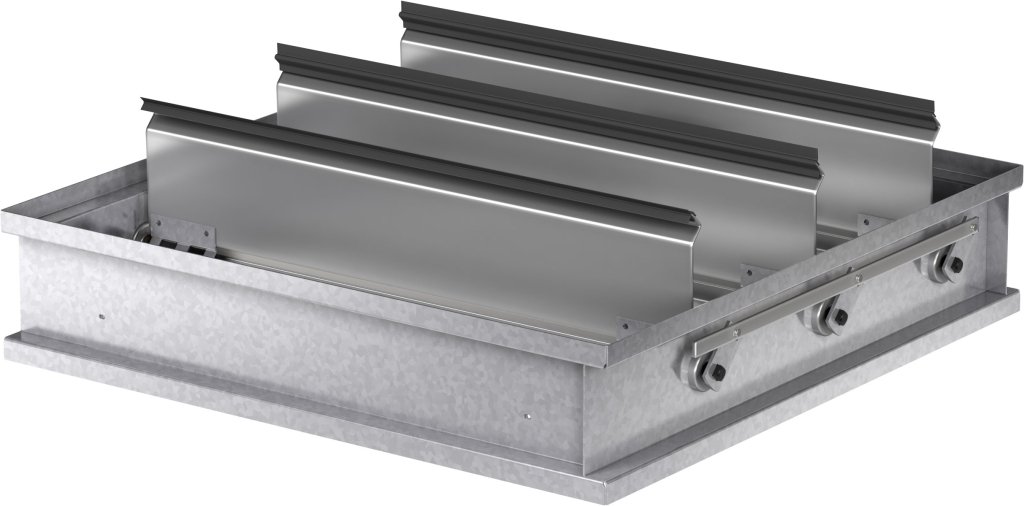

The SEBR-10 pivoted backdraft damper is constructed from 316 stainless steel for enhanced corrosion resistance in harsh or corrosive environments. Designed for low-velocity systems, it mounts horizontally to allow vertical upward airflow while preventing reverse flow when the system is off. With a no-flange configuration for streamlined integration, the SEBR-10 provides reliable, low-maintenance backdraft protection in applications where material durability and directional airflow control are critical.
Product Highlights
| Airflow Direction |
Vertical Up
|
|---|---|
| Blade Material |
316SS
|
| Frame Material |
316SS
|
| Frame Type |
No Flange
|
| Mounting Orientation |
Horizontal
|
