TAUB-CA : Belt Drive Tube Axial Upblast Exhaust Fan
TAUB-CA : Belt Drive Tube Axial Upblast Exhaust Fan

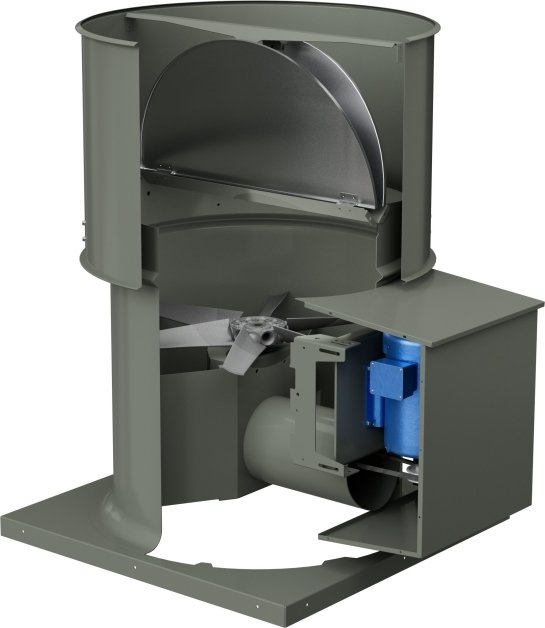

This belt-driven model features a welded housing with durable powder-coated finish and cast aluminum hub and blades, supporting reliable performance in clean air, fume exhaust, and spark-resistant applications. Design enhancements include a belt tube and bearing cover to isolate drive components from the airstream, butterfly dampers with rolled edges for added strength, and gasketed blade edges to promote quieter closure. The unit is rated for a maximum operating temperature of 180°F, making it suitable for a range of commercial and light industrial environments.
Product Highlights
| Airflow (cfm) |
2,800 to 72,000
|
|---|---|
| Maximum Static Pressure (in. wg.) |
1.5
|
| Airflow Direction |
Exhaust
|
| Installation Type |
Roof Mounted
|
| Mounting Location |
Outdoor
|
