TBI-FS Upblast : Belt Drive Tube Axial Upblast Exhaust Fan

TBI-FS Upblast : Belt Drive Tube Axial Upblast Exhaust Fan

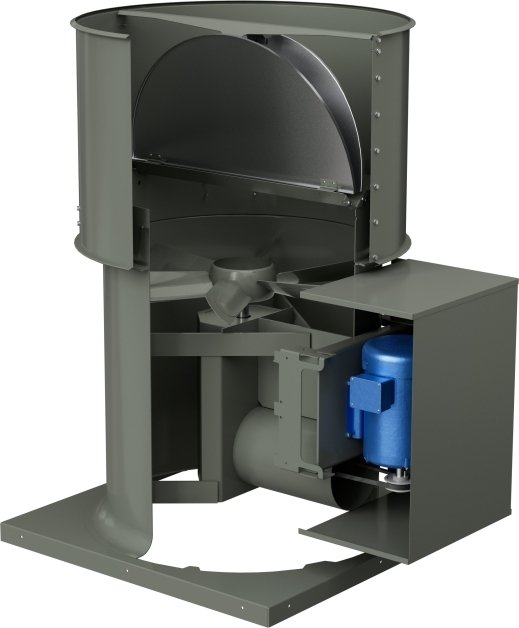

This belt drive axial exhaust fan has a welded housing, powder coating with a fabricated steel propeller. The motor is mounted out of the airstream making it suitable for clean air, high-temperature process exhaust or high-temperature emergency smoke removal. Features include a butterfly dampers with a rolled edge for increased strength, and gasket covered edges for quiet closure.

Request a Quote

Product Highlights

Airflow (cfm)
6,000 to 77,000
Maximum Static Pressure (in. wg.)
4.5
Airflow Direction
Exhaust
Installation Type
Roof Mounted
Mounting Location
Outdoor
View More Details >

Features

Adjustable Motor Base Bearings Belt & Bearing Tube Butterfly Dampers Drives Extended Lube Lines Housing Impeller Motor Cover Motors
Standard
Optional

Select from menu to Highlight feature

Product Details

Certifications

AMCA licensed for FEI, Air & Sound Performance

UL/cUL Listed for Electrical (UL/cUL-705) and Power Ventilators for Smoke Control
Drive Type

Belt Drive
Housing Construction

Welded
Housing Material

Painted Steel
Housing Style

Tubular
Impeller Material

Fabricated Steel
Impeller Type

Axial
Mounting Orientation

Vertical
