Vektor-MD : Mixed Flow High Plume Dilution Laboratory Exhaust Fan
Vektor-MD : Mixed Flow High Plume Dilution Laboratory Exhaust Fan

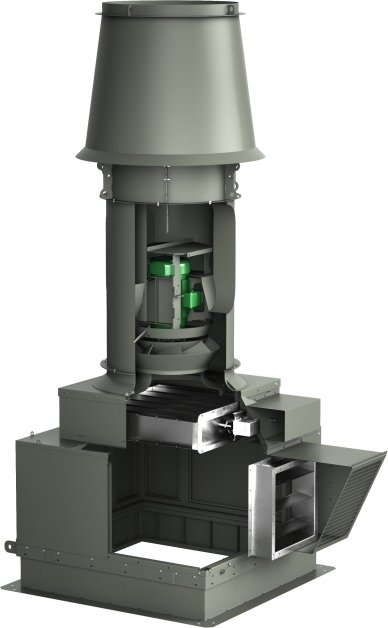

Vektor-MD incorporates an inline mixed-flow fan available in belt or direct drive configurations, each featuring a bifurcated housing that isolates drive components from the contaminated airstream for enhanced durability and service life. A windband and engineered discharge nozzle work together to entrain ambient air, promoting dilution of contaminated exhaust and improving plume dispersion. The Vektor-MD can be configured with up to six fans on a common plenum to meet capacity and redundancy requirements and is compatible with the Vektor-ERS energy recovery system for enhanced overall system efficiency.
Product Highlights
| Airflow (cfm) |
1,500 to 83,000
|
|---|---|
| Maximum Static Pressure (in. wg.) |
11.5
|
| Airflow Direction |
Exhaust
|
| Installation Type |
Roof Mounted
|
| Mounting Location |
Outdoor
|
