EDD-401 : Stationary Louver, Dual Drainable Blade, 4-inch Depth
EDD-401 : Stationary Louver, Dual Drainable Blade, 4-inch Depth

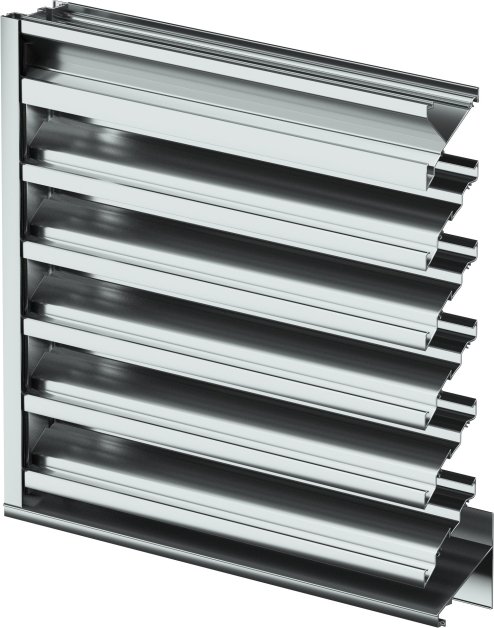

Model EDD-401 is an extruded aluminum, stationary drainable louver engineered to protect exterior wall intake and exhaust openings from water penetration. The drainable head and stationary horizontal dual-drainable blades actively collect and channel water into vertical downspouts integrated within the jambs, where it is directed to the sill and discharged by gravity, delivering effective water management and reliable building envelope protection.
Product Highlights
| Blade Type |
Drainable
|
|---|---|
| Frame Depth (Inches) |
4
|
| Certifications |
AMCA 500-L Water Penetration and Air Performance
|
| Free Area for 4' x 4' (%) |
51
|
| Free Area for 4' x 4' (ft square) |
8.22
|
| Material |
Aluminum
|
| Minimum Size |
12 in. W x 12 in. H
|
| Maximum Single Section Size |
120 in. W x 120 in. H, Limited to 70 sq. ft.
|
| Beginning Point of Water Penetration (ft/min) |
922
|
