ESD-435 : Stationary Louver, Drainable Blade, 4-inch Depth
ESD-435 : Stationary Louver, Drainable Blade, 4-inch Depth

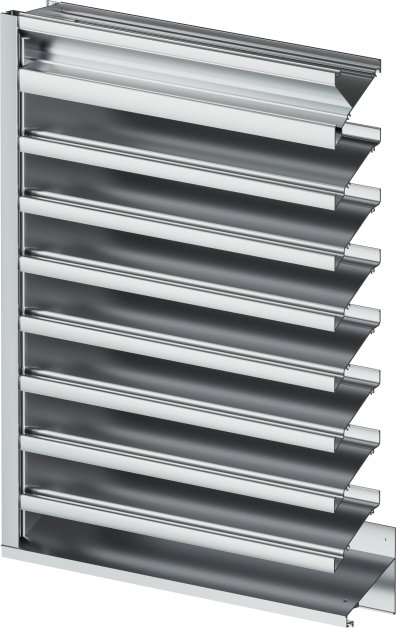

Model ESD-435 is an extruded aluminum stationary drainable louver designed to safeguard exterior wall intake and exhaust openings against water infiltration. Its drainable head and stationary horizontal drainable blades capture and direct water into vertical downspouts integrated within the jambs, allowing gravity-assisted discharge at the sill, providing effective moisture control and dependable building envelope protection.
Product Highlights
| Blade Type |
Drainable
|
|---|---|
| Frame Depth (Inches) |
4
|
| Certifications |
AMCA 500-L Water Penetration and Air Performance
|
| Free Area for 4' x 4' (%) |
56
|
| Free Area for 4' x 4' (ft square) |
8.92
|
| Material |
Aluminum
|
| Minimum Size |
12 in. W x 9 in. H
|
| Maximum Single Section Size |
120 in. W x 120 in. H, Limited to 70 sq. ft.
|
| Beginning Point of Water Penetration (ft/min) |
989
|
