ESD-603 : Stationary Louver, Drainable Blade, 6-inch Depth
ESD-603 : Stationary Louver, Drainable Blade, 6-inch Depth

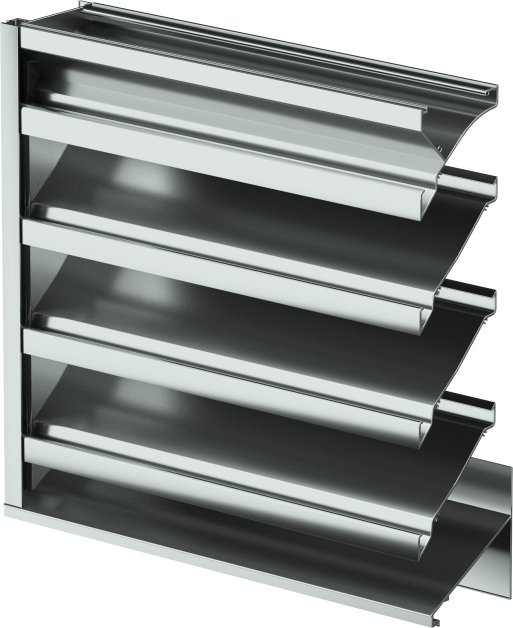

Model ESD-603 is an extruded aluminum stationary drainable louver engineered to protect exterior wall intake and exhaust openings from water penetration. The drainable head and stationary horizontal drainable blades collect and channel water into vertical downspouts concealed within the jambs, directing it to the sill for gravity-assisted discharge, ensuring effective water management and long-term exterior wall performance.
Product Highlights
| Blade Type |
Drainable
|
|---|---|
| Frame Depth (Inches) |
6
|
| Certifications |
AMCA 500-L Water Penetration and Air Performance
|
| Free Area for 4' x 4' (%) |
52
|
| Free Area for 4' x 4' (ft square) |
8.36
|
| Material |
Aluminum
|
| Minimum Size |
12 in. W x 16 in. H
|
| Maximum Single Section Size |
120 in. W x 120 in. H, Limited to 70 sq. ft.
|
| Beginning Point of Water Penetration (ft/min) |
1,027
|
