ESD-635 : Stationary Louver, Drainable Blade, 6-inch Depth
ESD-635 : Stationary Louver, Drainable Blade, 6-inch Depth

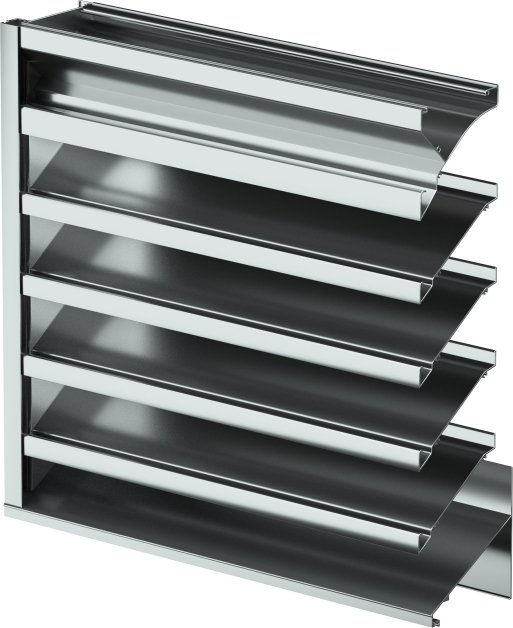

Model ESD-635 is an extruded aluminum stationary drainable louver designed to protect exterior wall intake and exhaust openings from water infiltration. Its drainable head and stationary horizontal drainable blades efficiently capture and route water into vertical downspouts concealed within the jambs, where it is directed to the sill for gravity-assisted discharge, providing dependable moisture control and enhanced building envelope performance.
Product Highlights
| Blade Type |
Drainable
|
|---|---|
| Frame Depth (Inches) |
6
|
| Certifications |
AMCA 500-L Water Penetration and Air Performance
|
| Free Area for 4' x 4' (%) |
59
|
| Free Area for 4' x 4' (ft square) |
9.41
|
| Material |
Aluminum
|
| Minimum Size |
12 in. W x 12 in. H
|
| Maximum Single Section Size |
120 in. W x 120 in. H, Limited to 70 sq. ft.
|
| Beginning Point of Water Penetration (ft/min) |
1,250
|
