ESD-635HP : Stationary Louver, Drainable Blade, 6-inch Depth
ESD-635HP : Stationary Louver, Drainable Blade, 6-inch Depth

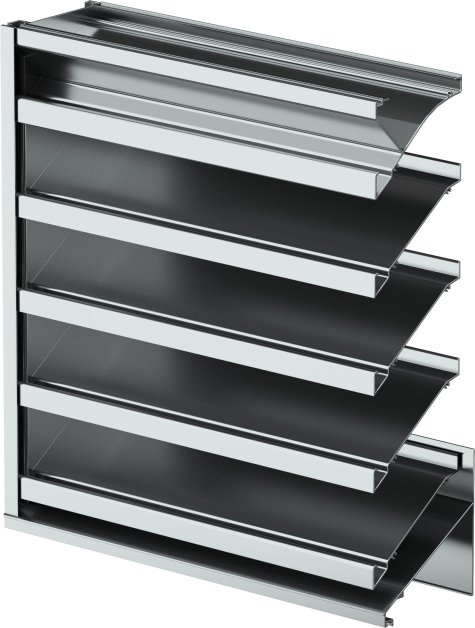

Model ESD-635HP is an extruded aluminum stationary drainable louver engineered for high-performance protection of exterior wall intake and exhaust openings. Its drainable head and stationary horizontal drainable blades efficiently collect and direct water into vertical downspouts concealed within the jambs, where gravity carries it to the sill for discharge, providing superior moisture management and dependable building envelope performance.
Product Highlights
| Blade Type |
Drainable
|
|---|---|
| Frame Depth (Inches) |
6
|
| Certifications |
AMCA 500-L Water Penetration and Air Performance
|
| Free Area for 4' x 4' (%) |
62
|
| Free Area for 4' x 4' (ft square) |
9.84
|
| Material |
Aluminum
|
| Minimum Size |
12 in. W x 12 in. H
|
| Maximum Single Section Size |
48 in. W x 48 in. H
|
| Beginning Point of Water Penetration (ft/min) |
910
|
Request Drawing
