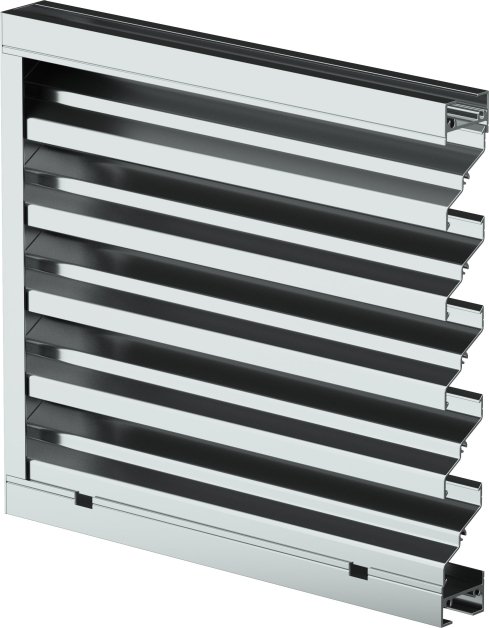

ESJ-155 : Stationary Thinline Louver, J Blade, 1-1/2-inch Depth
ESJ-155 : Stationary Thinline Louver, J Blade, 1-1/2-inch Depth
Manufactured of heavy-gauge aluminum, Model ESJ-155 is well suited for interior or exterior applications requiring high free area and low airflow resistance within a narrow frame profile, supporting efficient airflow performance while maintaining a clean, space-conscious design.
Product Highlights
| Blade Type |
Non-drainable
|
|---|---|
| Frame Depth (Inches) |
1.5
|
| Free Area for 4' x 4' (%) |
46
|
| Free Area for 4' x 4' (ft square) |
7.35
|
| Material |
Aluminum
|
| Minimum Size |
10 in. W x 10 in. H (without flange)
12 in. W x 12 in. H (with flange)
|
| Maximum Single Section Size |
48 in. W x 60 in. H
|
Request Drawing
