ESJ-202 : Stationary Louver, J Blade, 2-inch Depth
ESJ-202 : Stationary Louver, J Blade, 2-inch Depth

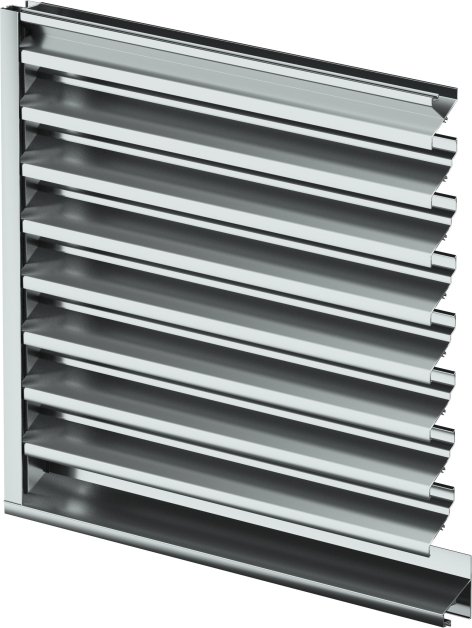

Model ESJ-202 is an extruded aluminum stationary louver engineered to protect exterior wall intake and exhaust openings while delivering a clean architectural aesthetic. The design features J-style blades, a sloped sill for effective water shedding, and concealed vertical mullions when configured in multiple sections鈥攑roviding a seamless appearance across wide openings.
Product Highlights
| Blade Type |
Non-drainable
|
|---|---|
| Frame Depth (Inches) |
2
|
| Certifications |
AMCA 500-L Water Penetration and Air Performance
|
| Free Area for 4' x 4' (%) |
38
|
| Free Area for 4' x 4' (ft square) |
6.01
|
| Material |
Aluminum
|
| Minimum Size |
6 in. W x 6. H
|
| Maximum Single Section Size |
120 in. W x 120 in. H, Limited to 70 sq. ft.
|
| Beginning Point of Water Penetration (ft/min) |
688
|
