SED-501 : Sightproof Louver, Chevron Blade, 5-inch Depth
SED-501 : Sightproof Louver, Chevron Blade, 5-inch Depth

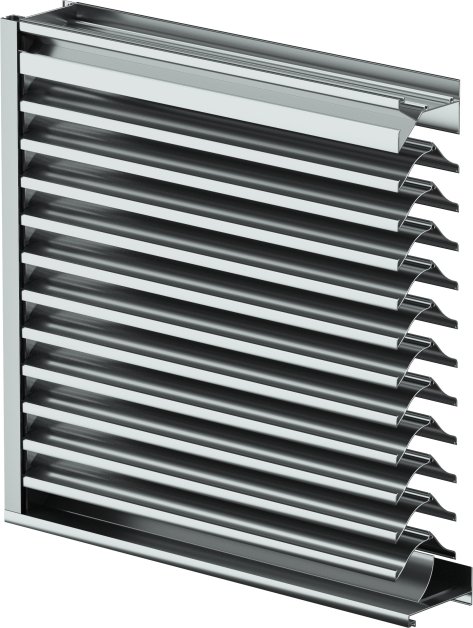

Model SED-501 is an extruded aluminum stationary drainable, sightproof louver designed to protect exterior wall intake and exhaust openings while preventing line-of-sight visibility. Drainable chevron-style blades and a drainable head capture and channel water into vertical downspouts integrated within the jambs, directing it to the sill for gravity-assisted discharge, delivering effective water management, visual screening, and reliable building envelope protection.
Product Highlights
| Blade Type |
Sightproof
|
|---|---|
| Frame Depth (Inches) |
5
|
| Certifications |
AMCA 500-L Water Penetration and Air Performance
|
| Free Area for 4' x 4' (%) |
57
|
| Free Area for 4' x 4' (ft square) |
9.11
|
| Material |
Aluminum
|
| Minimum Size |
12 in. W x 12 in. H
|
| Maximum Single Section Size |
120 in. W x 120 in. H, Limited to 70 sq. ft.
|
| Beginning Point of Water Penetration (ft/min) |
1,134
|
