AFL-601 : FEMA Louver, Chevron Blade, 6-inch Depth
AFL-601 : FEMA Louver, Chevron Blade, 6-inch Depth

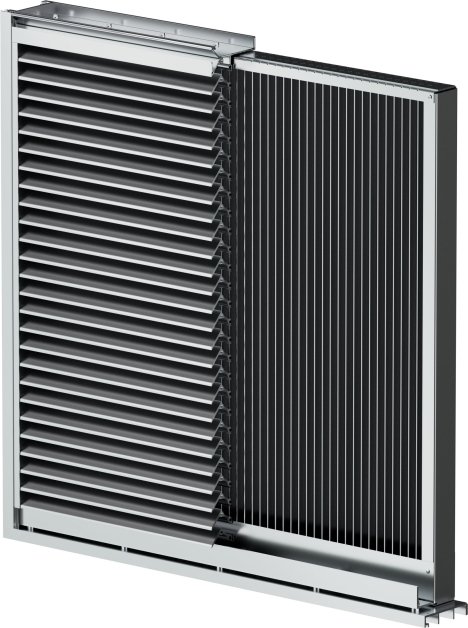

Model AFL-601 is an all-in-one wind driven rain FEMA dual-module with horizontal front blades and vertical rear blades designed to protect air intake and exhaust ventilation openings on FEMA 361/320 storm shelters or safe rooms. It is tested in accordance with the stringent ICC 500 (2020 & 2023) test standard and is UL Listed. AFL-601 is AMCA 540 Listed for Wind-Borne Debris Impact and AMCA 550 Listed for High-Velocity Wind Driven Rain.
Product Highlights
| Blade Type |
Rain Resistant
|
|---|---|
| Frame Depth (Inches) |
6
|
| Certifications |
AMCA 550 High Velocity Wind Driven Rain
AMCA 500-L Water Penetration, Air Performance, and Wind-Driven Rain
AMCA 540 Test Method for Louvers Impacted by Wind Borne Debris (Basic Protection, Missile D and Enhanced Protection, Missile E)
Tested in accordance with ICC 500 (2020 & 2023)
|
| Free Area for 4' x 4' (%) |
44
|
| Free Area for 4' x 4' (ft square) |
6.97
|
| Material |
Aluminum
|
| Minimum Size |
12 in. W x 12 in. H
|
| Maximum Single Section Size |
48 in. W x 96 in. H
|
| Beginning Point of Water Penetration (ft/min) |
1,250
|
| Wind Load (PSF) |
350
|
