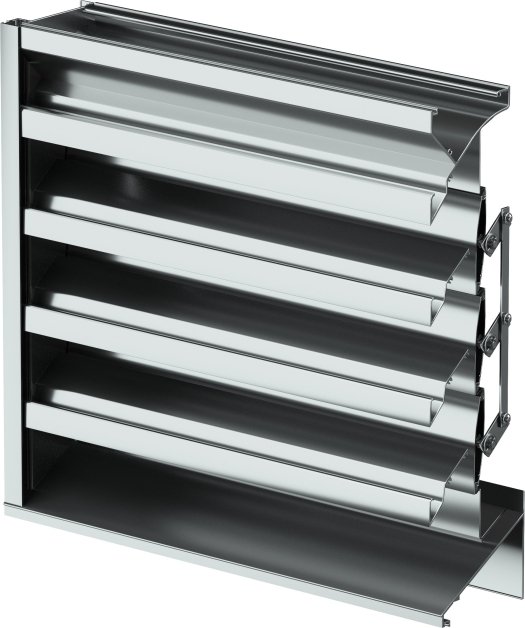

EACA-601D : Hurricane Louver, Airfoil Blade, 6-inch Depth
EACA-601D : Hurricane Louver, Airfoil Blade, 6-inch Depth
Model EACA-601D is a Miami-Dade Qualified and Florida Product Approved combination louver-damper designed to protect exterior wall intake and exhaust openings in hurricane-prone regions. The operable damper blades can be positioned open or closed and are typically furnished with factory-mounted and factory-adjusted electric actuators for streamlined installation. With the blades closed, the unit maintains AMCA 550 Listing for High Velocity Wind Driven Rain and is approved for use in Florida鈥檚 High Velocity Hurricane Zone (HVHZ), delivering code-compliant performance in severe weather applications.
Product Highlights
| Blade Type |
Drainable
|
|---|---|
| Frame Depth (Inches) |
6
|
| Certifications |
AMCA 500-L Water Penetration and Air Performance
AMCA 540 Test Method for Louvers Impacted by Wind Borne Debris (Basic Protection, Missile Level D)
AMCA 550 High Velocity Wind Driven Rain
Florida Test Protocol: TAS 201 Large Missile Impact
Florida Test Protocol: TAS 202 Uniform Static Air Pressure
Florida Test Protocol: TAS 203 Cyclic Wind Loading
|
| Free Area for 4' x 4' (%) |
45
|
| Free Area for 4' x 4' (ft square) |
7.27
|
| Material |
Aluminum
|
| Minimum Size |
12 in. W x 16 in. H
|
| Maximum Single Section Size |
60 in. W x 120 in. H
|
| Beginning Point of Water Penetration (ft/min) |
1,221
|
| Wind Load (PSF) |
110
|
