EHH-601DE : Hurricane, Horizontal Blade, 6-inch Depth
EHH-601DE : Hurricane, Horizontal Blade, 6-inch Depth

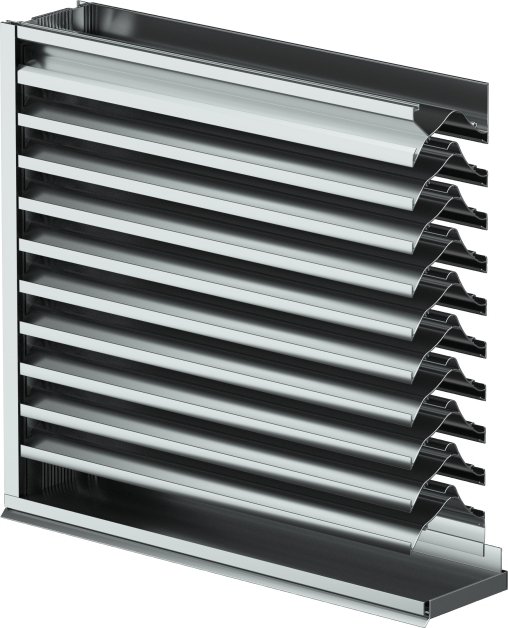

Model EHH-601DE is a Miami-Dade Qualified and Florida Product Approved stationary horizontal blade, extruded aluminum louver engineered to protect exterior wall intake and exhaust openings in hurricane-prone applications. It is AMCA 540 Listed for wind-borne debris impact and delivers high-performance wind driven rain resistance in accordance with AMCA 500-L. Approved for use in Florida鈥檚 High Velocity Hurricane Zone (HVHZ), Model EHH-601DE provides code-compliant protection for critical building envelope applications.
Product Highlights
| Blade Type |
Rain Resistant
|
|---|---|
| Frame Depth (Inches) |
6
|
| Certifications |
AMCA 500-L Water Penetration, Air Performance, and Wind-Driven Rain
AMCA 540 Test Method for Louvers Impacted by Wind Borne Debris (Basic Protection, Missile Level D and Enhanced Protection, Missile Level E)
Florida Test Protocol: TAS 201 Large Missile Impact
Florida Test Protocol: TAS 202 Uniform Static Air Pressure
Florida Test Protocol: TAS 203 Cyclic Wind Loading
|
| Free Area for 4' x 4' (%) |
47
|
| Free Area for 4' x 4' (ft square) |
7.58
|
| Material |
Aluminum
|
| Beginning Point of Water Penetration (ft/min) |
1,250
|
| Wind Load (PSF) |
150
|
