EHV-901D : Hurricane Louver, Dual-module, 9-inch Depth
EHV-901D : Hurricane Louver, Dual-module, 9-inch Depth

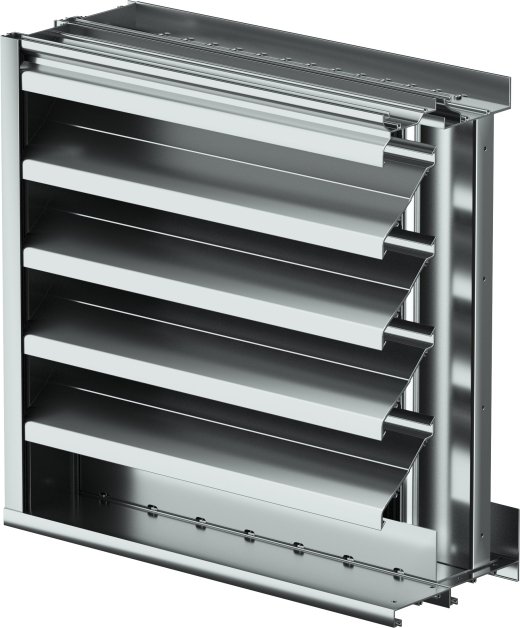

Model EHV-901D is a Miami-Dade Qualified and Florida Product Approved stationary, dual-module, extruded aluminum wind-driven rain louver engineered to protect exterior wall intake and exhaust openings in high-performance applications. Its horizontal front blades and vertical rear blades provide advanced moisture separation and protection. The unit is AMCA 540 Listed for wind-borne debris impact and AMCA 550 Listed for High Velocity Wind-Driven Rain, delivering high-performance, code-compliant protection for critical building envelope applications.
Product Highlights
| Blade Type |
Rain Resistant
|
|---|---|
| Frame Depth (Inches) |
9
|
| Certifications |
AMCA 500-L Water Penetration, Air Performance, and Wind-Driven Rain
AMCA 540 Test Method for Louvers Impacted by Wind Borne Debris (Basic Protection, Missile D and Enhanced Protection, Missile E)
AMCA 550 High Velocity Wind Driven Rain
Florida Test Protocol: TAS 201 Large Missile Impact
Florida Test Protocol: TAS 202 Uniform Static Air Pressure
Florida Test Protocol: TAS 203 Cyclic Wind Loading
|
| Free Area for 4' x 4' (%) |
54
|
| Free Area for 4' x 4' (ft square) |
8.66
|
| Material |
Aluminum
|
| Minimum Size |
12 in. W x 12 in. H
|
| Maximum Single Section Size |
60 in. W x 120 in. H
|
| Beginning Point of Water Penetration (ft/min) |
974
|
| Wind Load (PSF) |
130
|
