ESD-635D : Hurricane Louver, Drainable Blade, 6-inch Depth
ESD-635D : Hurricane Louver, Drainable Blade, 6-inch Depth

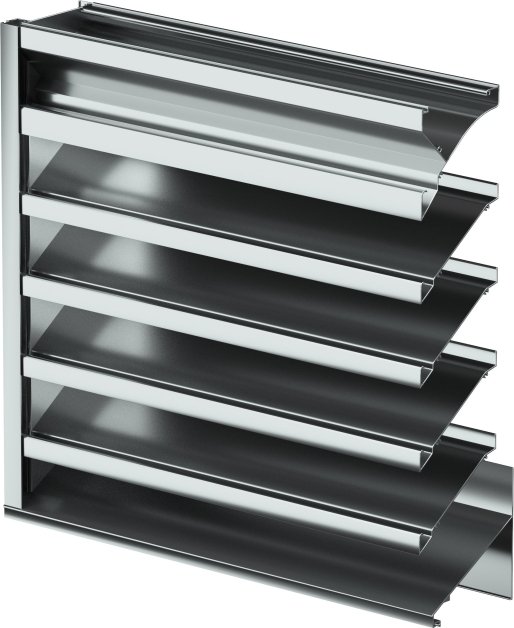

Model ESD-635D is a Miami-Dade Qualified and Florida Product Approved stationary horizontal drainable blade extruded aluminum louver engineered to protect exterior wall intake and exhaust openings in hurricane-prone regions. It is AMCA 540 Listed for wind-borne debris impact and approved for use in Florida鈥檚 High Velocity Hurricane Zone (HVHZ), supporting stringent code requirements. When furnished with the optional factory-attached VCD-40 damper in the closed position, the assembly maintains AMCA 550 Listing for High Velocity Wind Driven Rain, providing enhanced protection in severe weather conditions.
Product Highlights
| Blade Type |
Drainable
|
|---|---|
| Frame Depth (Inches) |
6
|
| Certifications |
AMCA 500-L Water Penetration and Air Performance
AMCA 540 Test Method for Louvers Impacted by Wind Borne Debris (Basic Protection, Missile Level D and Enhanced Protection, Missile Level E with 0.125 in. frame and blade material thickness)
AMCA 550 High Velocity Rain Resistant (with factory attached VCD-40 Damper in closed position)
Florida Test Protocol: TAS 201 Large Missile Impact
Florida Test Protocol: TAS 202 Uniform Static Air Pressure
Florida Test Protocol: TAS 203 Cyclic Wind Loading
|
| Free Area for 4' x 4' (%) |
59
|
| Free Area for 4' x 4' (ft square) |
9.41
|
| Material |
Aluminum
|
| Beginning Point of Water Penetration (ft/min) |
1,250
|
