ESD-635DE : Hurricane Louver, Drainable Blade, 6-inch Depth
ESD-635DE : Hurricane Louver, Drainable Blade, 6-inch Depth

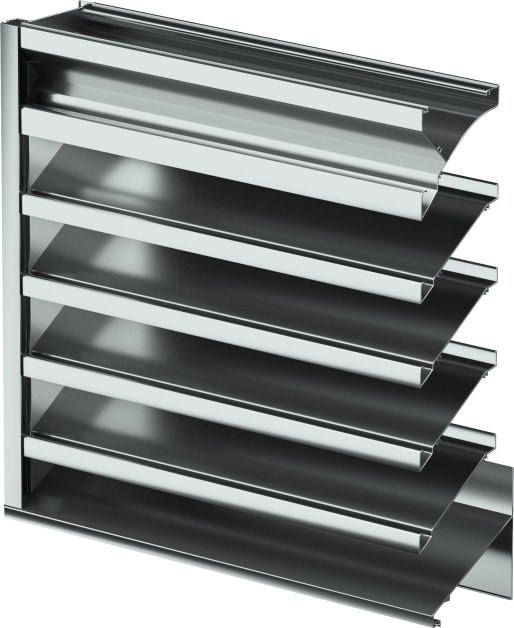

Model ESD-635DE is a Miami-Dade Qualified and Florida Product Approved stationary horizontal drainable blade extruded aluminum louver engineered to protect exterior wall intake and exhaust openings in hurricane-prone applications. It is AMCA 540 Listed for wind-borne debris impact and approved for use in Florida鈥檚 High Velocity Hurricane Zone (HVHZ), supporting stringent building code compliance. When furnished with the optional factory-attached VCD-40 damper in the closed position, the assembly maintains AMCA 550 Listing for High Velocity Wind Driven Rain, delivering enhanced protection in severe weather environments.
Product Highlights
| Blade Type |
Drainable
|
|---|---|
| Frame Depth (Inches) |
6
|
| Certifications |
AMCA 500-L Water Penetration and Air Performance
AMCA 540 Test Method for Louvers Impacted by Wind Borne Debris (Basic Protection, Missile Level D)
AMCA 550 High Velocity Rain Resistant (with factory attached VCD-40 Damper in closed position)
Florida Test Protocol: TAS 201 Large Missile Impact
Florida Test Protocol: TAS 202 Uniform Static Air Pressure
Florida Test Protocol: TAS 203 Cyclic Wind Loading
|
| Free Area for 4' x 4' (%) |
59
|
| Free Area for 4' x 4' (ft square) |
9.41
|
| Material |
Aluminum
|
| Beginning Point of Water Penetration (ft/min) |
1,250
|
| Wind Load (PSF) |
150
|
