ESD-635X : Hurricane Louver, Drainable Blade, 6-inch Depth
ESD-635X : Hurricane Louver, Drainable Blade, 6-inch Depth

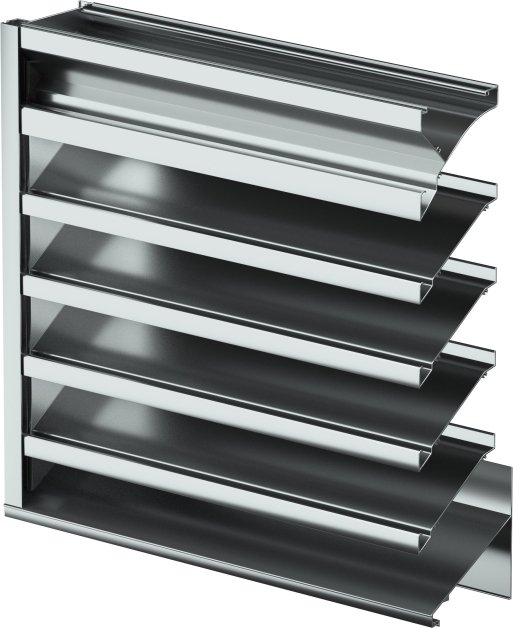

Model ESD-635X is a Florida Product Approved stationary drainable blade extruded aluminum louver engineered to protect exterior wall intake and exhaust openings in hurricane-prone applications. When specified accordingly, it is AMCA 540 Listed for Wind-Borne Debris impact and approved for use in Florida鈥檚 High Velocity Hurricane Zone (HVHZ), providing code-compliant performance for demanding coastal and severe weather conditions.
Product Highlights
| Blade Type |
Drainable
|
|---|---|
| Frame Depth (Inches) |
6
|
| Certifications |
AMCA 500-L Water Penetration and Air Performance
AMCA 540 Test Method for Louvers Impacted by Wind Borne Debris (Basic Protection, Missile Level D and Enhanced Protection, Missile Level E with 0.125 in. frame and blade material thickness)
Florida Test Protocol: TAS 201 Large Missile Impact
Florida Test Protocol: TAS 202 Uniform Static Air Pressure
Florida Test Protocol: TAS 203 Cyclic Wind Loading
|
| Free Area for 4' x 4' (%) |
59
|
| Free Area for 4' x 4' (ft square) |
9.41
|
| Material |
Aluminum
|
| Minimum Size |
12 in. W x 12 in. H
|
| Maximum Single Section Size |
84 in. W x 144 in. H or 120 in. W x 84 in. H
|
| Beginning Point of Water Penetration (ft/min) |
1,250
|
| Wind Load (PSF) |
200
|
