EVH-501D : Hurricane Louver, Vertical Blade, 5-inch Depth
EVH-501D : Hurricane Louver, Vertical Blade, 5-inch Depth

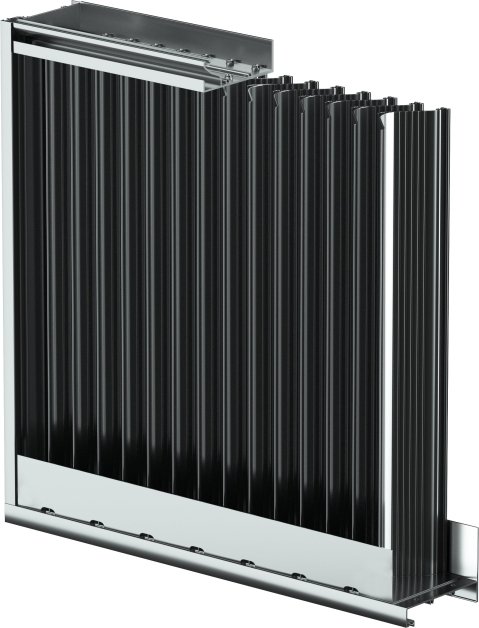

Model EVH-501D is a Miami-Dade Qualified and Florida Product Approved stationary vertical blade, extruded aluminum wind driven rain louver engineered to protect exterior wall intake and exhaust openings in hurricane-prone regions. It is AMCA 540 Listed for wind-borne debris impact and AMCA 550 Listed for High Velocity Wind Driven Rain, and is approved for use in Florida鈥檚 High Velocity Hurricane Zone (HVHZ), delivering code-compliant protection for critical building envelope applications.
Product Highlights
| Blade Type |
Rain Resistant
|
|---|---|
| Frame Depth (Inches) |
5
|
| Certifications |
AMCA 500-L Water Penetration, Air Performance, and Wind-Driven Rain
AMCA 540 Test Method for Louvers Impacted by Wind Borne Debris (Basic Protection, Missile D and Enhanced Protection, Missile E)
AMCA 550 High Velocity Wind Driven Rain
Florida Test Protocol: TAS 201 Large Missile Impact
Florida Test Protocol: TAS 202 Uniform Static Air Pressure
Florida Test Protocol: TAS 203 Cyclic Wind Loading
|
| Free Area for 4' x 4' (%) |
55
|
| Free Area for 4' x 4' (ft square) |
8.77
|
| Material |
Aluminum
|
| Minimum Size |
12 in. W x 12 in. H
|
| Maximum Single Section Size |
120 in. W x 120 in. H, Limited to 60 sq. ft.
|
| Beginning Point of Water Penetration (ft/min) |
1,250
|
| Wind Load (PSF) |
130
|
