EAC-401 : Combination Louver/Damper, Drainable Blade, 4-inch Depth
EAC-401 : Combination Louver/Damper, Drainable Blade, 4-inch Depth

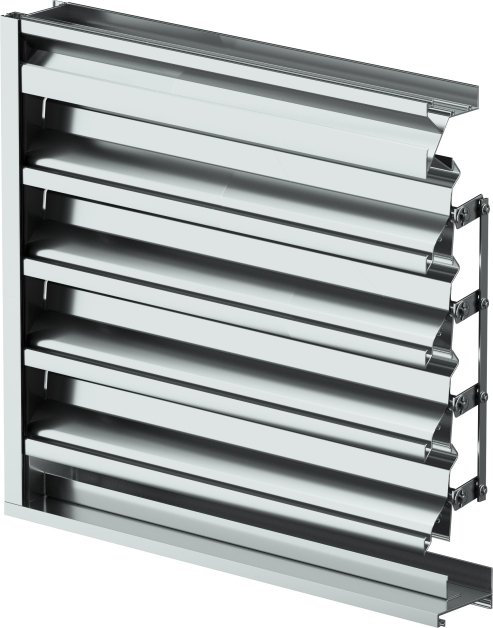

Model EAC-401 is an extruded aluminum combination louver-damper featuring drainable-style blades and concealed damper linkage within the jambs for a clean appearance and protected operation. In the open position, it performs as a conventional louver; when closed, it provides tight shutoff against air and weather infiltration. Commonly supplied with factory-mounted and factory-adjusted electric actuators, it delivers dependable airflow control and streamlined installation.
Product Highlights
| Blade Orientation |
Horizontal
|
|---|---|
| Blade Type |
Drainable
|
| Operable Type |
Combination
|
| Frame Depth (Inches) |
4
|
| Certifications |
AMCA 500-L Water Penetration and Air Performance
|
| Free Area for 4' x 4' (%) |
40
|
| Free Area for 4' x 4' (ft square) |
6.34
|
| Material |
Aluminum
|
| Minimum Size |
12 in. W x 12 in. H
|
| Maximum Single Section Size |
60 in. W x 96 in. H
|
| Beginning Point of Water Penetration (ft/min) |
1,192
|
