EACC-601 : Combination Louver/Damper, Concealed Actuator, 6-inch Depth
EACC-601 : Combination Louver/Damper, Concealed Actuator, 6-inch Depth

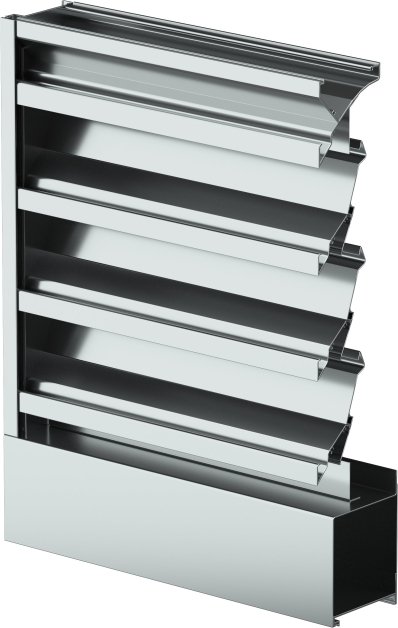

Model EACC-601 is an extruded aluminum combination louver-damper featuring drainable-style blades and concealed damper linkage within the jambs for protected operation and a clean architectural appearance. It operates as a conventional louver in the open position and provides tight shutoff against air and weather infiltration when closed. The electric actuator is factory-supplied and housed in a concealed compartment beneath the louver, simplifying installation while maintaining a streamlined exterior profile.
Product Highlights
| Blade Orientation |
Horizontal
|
|---|---|
| Blade Type |
Drainable
|
| Operable Type |
Combination
|
| Frame Depth (Inches) |
6
|
| Free Area for 4' x 4' (%) |
39
|
| Free Area for 4' x 4' (ft square) |
6.2
|
| Material |
Aluminum
|
| Minimum Size |
18 in. W x 24.25 in. H
|
| Maximum Single Section Size |
60 in. W x 96 in. H
|
| Beginning Point of Water Penetration (ft/min) |
1,024
|
