EAD-401 : Operable Louver, Drainable Blade, 4-inch Depth
EAD-401 : Operable Louver, Drainable Blade, 4-inch Depth

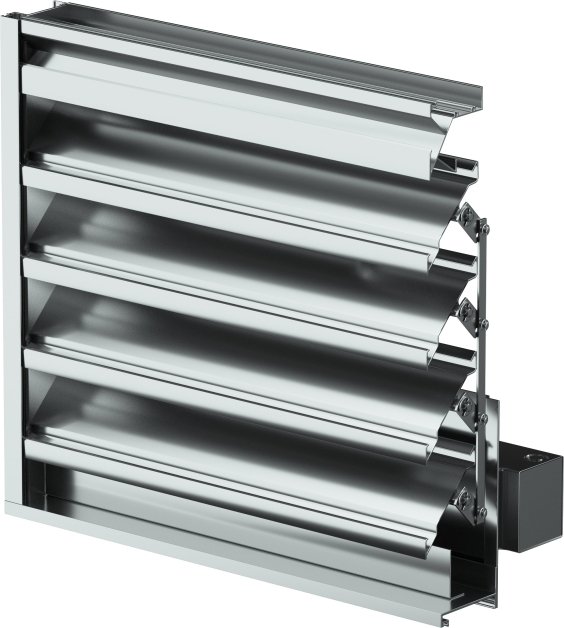

Model EAD-401 is an adjustable extruded aluminum louver featuring drainable-style blades that provide the performance of a conventional louver in the open position and tight shutoff against air and weather when closed. Typically supplied with factory-mounted and factory-adjusted electric actuators, it delivers reliable airflow control, weather protection, and simplified field installation.
Product Highlights
| Blade Orientation |
Horizontal
|
|---|---|
| Blade Type |
Drainable
|
| Operable Type |
Adjustable
|
| Frame Depth (Inches) |
4
|
| Certifications |
AMCA 500-L Water Penetration and Air Performance
|
| Free Area for 4' x 4' (%) |
36
|
| Free Area for 4' x 4' (ft square) |
5.81
|
| Material |
Aluminum
|
| Minimum Size |
12 in. W x 12 in. H
|
| Maximum Single Section Size |
60 in. W x 96 in. H
|
| Beginning Point of Water Penetration (ft/min) |
1,250
|
Request Drawing
