EAD-632W : Operable Louver, Drainable Blade, 6-inch Depth
EAD-632W : Operable Louver, Drainable Blade, 6-inch Depth

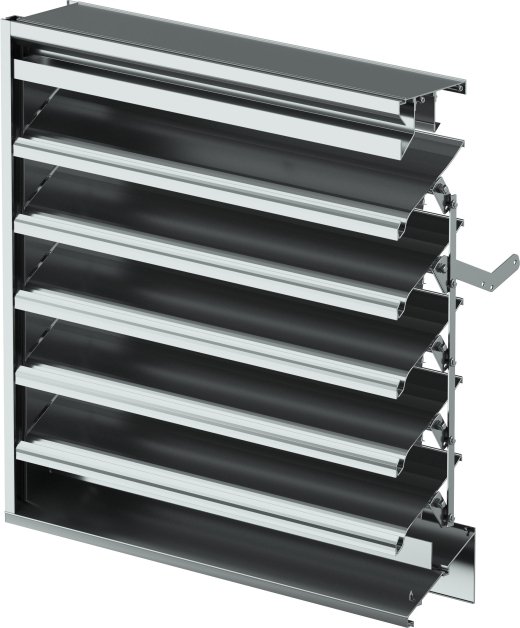

Model EAD-632W is an adjustable extruded aluminum louver featuring drainable-style blades that operate as a conventional louver when open and provide tight shutoff against air and weather infiltration when closed. Commonly furnished with factory-mounted and factory-adjusted electric actuators, it offers dependable airflow control, enhanced weather protection, and simplified installation.
Product Highlights
| Blade Orientation |
Horizontal
|
|---|---|
| Blade Type |
Drainable
|
| Operable Type |
Adjustable
|
| Frame Depth (Inches) |
6
|
| Certifications |
AMCA 500-L Water Penetration and Air Performance
|
| Free Area for 4' x 4' (%) |
57
|
| Free Area for 4' x 4' (ft square) |
9.16
|
| Material |
Aluminum
|
| Minimum Size |
12 in. W x 12 in. H
|
| Maximum Single Section Size |
60 in. W x 120 in. H
|
| Beginning Point of Water Penetration (ft/min) |
885
|
Request Drawing
