EAD-635 : Operable Louver, Drainable Blade, 6-inch Depth
EAD-635 : Operable Louver, Drainable Blade, 6-inch Depth

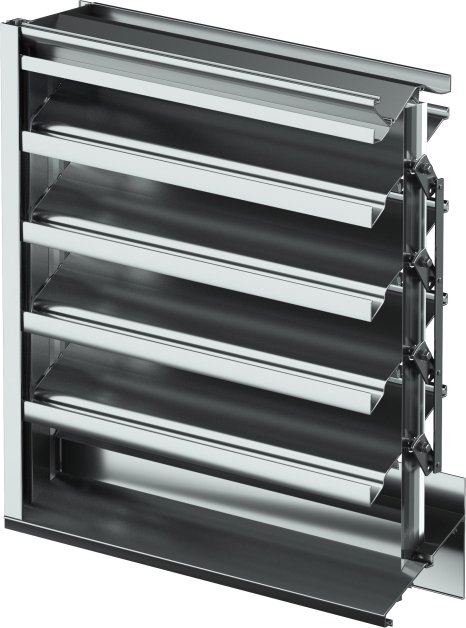

Model EAD-635 is an adjustable extruded aluminum louver with drainable-style blades that operates as a conventional louver in the open position and provides tight shutoff against air and weather when closed. Commonly furnished with factory-mounted and factory-adjusted electric actuators, it offers dependable airflow control, enhanced weather protection, and streamlined installation.
Product Highlights
| Blade Orientation |
Horizontal
|
|---|---|
| Blade Type |
Drainable
|
| Operable Type |
Adjustable
|
| Frame Depth (Inches) |
6
|
| Certifications |
AMCA 500-L Water Penetration and Air Performance
|
| Free Area for 4' x 4' (%) |
55
|
| Free Area for 4' x 4' (ft square) |
8.73
|
| Material |
Aluminum
|
| Minimum Size |
12 in. W x 12 in. H
|
| Maximum Single Section Size |
60 in. W x 120 in. H
|
| Beginning Point of Water Penetration (ft/min) |
1,107
|
