ECD-601 : Combination Louver/Damper, Drainable Blade, 6-inch Depth
ECD-601 : Combination Louver/Damper, Drainable Blade, 6-inch Depth

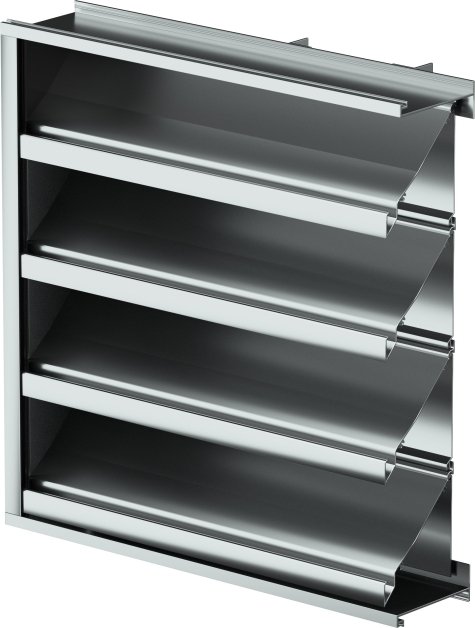

Model ECD-601 is an extruded aluminum combination louver-damper designed with drainable-style blades and rear blade linkage, enabling larger single-panel sizes than comparable concealed linkage products. It performs as a conventional louver in the open position and provides tight shutoff against air and weather infiltration when closed. Typically supplied with factory-mounted and factory-adjusted electric actuators, it delivers reliable airflow control, expanded design flexibility, and efficient installation.
Product Highlights
| Blade Orientation |
Horizontal
|
|---|---|
| Blade Type |
Drainable
|
| Operable Type |
Combination
|
| Frame Depth (Inches) |
6
|
| Certifications |
AMCA 500-L Water Penetration and Air Performance
|
| Free Area for 4' x 4' (%) |
46
|
| Free Area for 4' x 4' (ft square) |
7.32
|
| Material |
Aluminum
|
| Minimum Size |
12 in. W x 16 in. H
|
| Maximum Single Section Size |
120 in. W x 120 in. H, Limited to 70 sq. ft.
|
| Beginning Point of Water Penetration (ft/min) |
1,035
|
