EHH-201 : Wind Driven Rain Louver, Horizontal Blade, 2-inch Depth
EHH-201 : Wind Driven Rain Louver, Horizontal Blade, 2-inch Depth

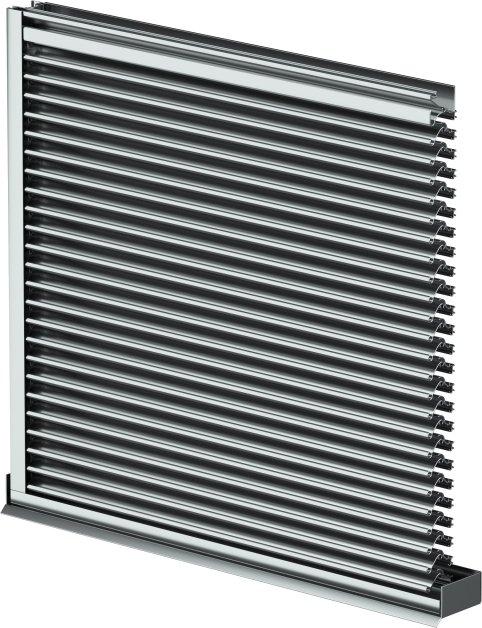

Model EHH-201 is engineered to protect exterior wall intake and exhaust openings in applications sensitive to water penetration. Featuring a drainable head and horizontal rain-resistant blades, it delivers exceptional resistance to wind driven rain, supporting enhanced building envelope protection in demanding weather conditions.
Product Highlights
| Blade Type |
Rain Resistant
|
|---|---|
| Frame Depth (Inches) |
2
|
| Certifications |
AMCA 500-L Water Penetration, Air Performance and Wind Driven Rain
|
| Free Area for 4' x 4' (%) |
39
|
| Free Area for 4' x 4' (ft square) |
6.22
|
| Material |
Aluminum
|
| Minimum Size |
6 in. W x 6. H
|
| Maximum Single Section Size |
96 in. W x 84 in. H
|
| Beginning Point of Water Penetration (ft/min) |
973
|
