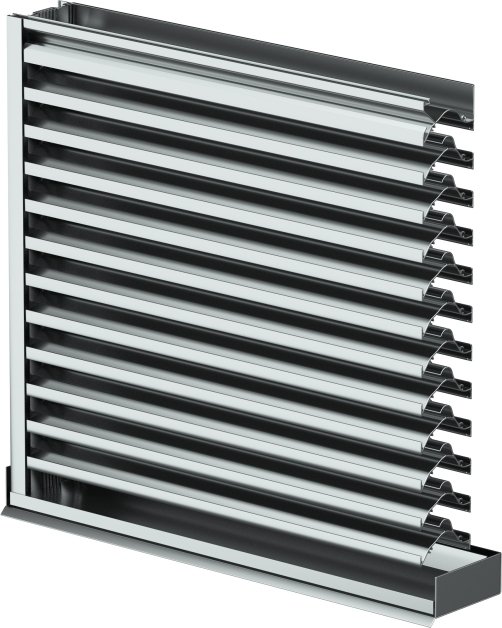

EHH-401 : Wind Driven Rain Louver, Horizontal Blade, 4-inch Depth
EHH-401 : Wind Driven Rain Louver, Horizontal Blade, 4-inch Depth
Model EHH-401 is designed to safeguard exterior wall intake and exhaust openings in applications sensitive to water penetration. A drainable head combined with horizontal rain-resistant blades delivers exceptional resistance to wind driven rain, helping maintain building envelope integrity in severe weather conditions.
Product Highlights
| Blade Type |
Rain Resistant
|
|---|---|
| Frame Depth (Inches) |
4
|
| Certifications |
AMCA 500-L Water Penetration, Air Performance and Wind Driven Rain
|
| Free Area for 4' x 4' (%) |
42
|
| Free Area for 4' x 4' (ft square) |
6.76
|
| Material |
Aluminum
|
| Minimum Size |
12 in. W x 6 in. H
|
| Maximum Single Section Size |
120 in. W x 120 in. H, Limited to 70 sq. ft.
|
| Beginning Point of Water Penetration (ft/min) |
1,043
|
