EHH-601 : Wind Driven Rain Louver, Horizontal Blade, 6-inch Depth
EHH-601 : Wind Driven Rain Louver, Horizontal Blade, 6-inch Depth

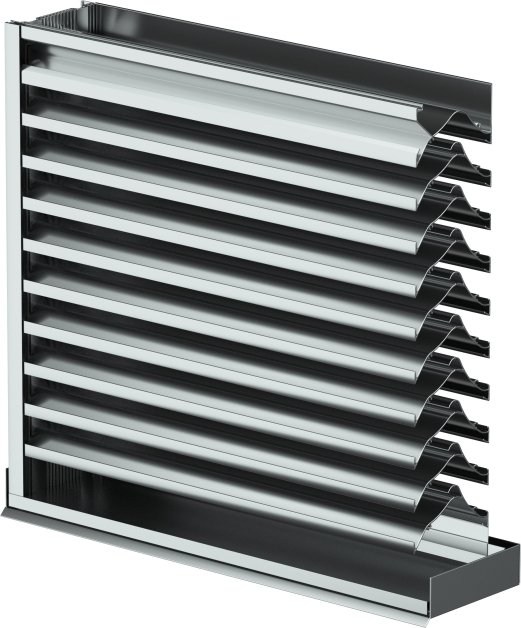

Model EHH-601 is engineered to protect exterior wall intake and exhaust openings in applications sensitive to water penetration. Featuring a drainable head and horizontal rain-resistant blades, it delivers exceptional resistance to wind driven rain, helping preserve building envelope integrity in severe weather conditions.
Product Highlights
| Blade Type |
Rain Resistant
|
|---|---|
| Frame Depth (Inches) |
6
|
| Certifications |
AMCA 500-L Water Penetration, Air Performance and Wind Driven Rain
|
| Free Area for 4' x 4' (%) |
47
|
| Free Area for 4' x 4' (ft square) |
7.58
|
| Material |
Aluminum
|
| Minimum Size |
12 in. W x 7 in. H
|
| Maximum Single Section Size |
120 in. W x 120 in. H, Limited to 70 sq. ft.
|
| Beginning Point of Water Penetration (ft/min) |
1,250
|
