EHH-701 : Wind Driven Rain Louver, Horizontal Blade, 7-inch Depth
EHH-701 : Wind Driven Rain Louver, Horizontal Blade, 7-inch Depth

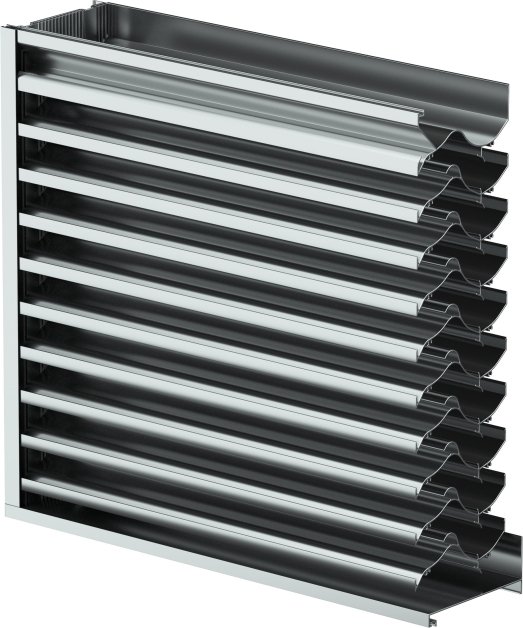

Model EHH-701 is designed to protect exterior wall intake and exhaust openings in applications where resistance to water penetration is critical. A drainable head paired with horizontal rain-resistant blades provides exceptional protection against wind driven rain, supporting reliable performance and long-term building envelope integrity in harsh weather conditions.
Product Highlights
| Blade Type |
Rain Resistant
|
|---|---|
| Frame Depth (Inches) |
7
|
| Certifications |
AMCA 500-L Water Penetration, Air Performance and Wind Driven Rain
|
| Free Area for 4' x 4' (%) |
43
|
| Free Area for 4' x 4' (ft square) |
6.99
|
| Material |
Aluminum
|
| Minimum Size |
12 in. W x 7 in. H
|
| Maximum Single Section Size |
120 in. W x 120 in. H, Limited to 70 sq. ft.
|
| Beginning Point of Water Penetration (ft/min) |
1,250
|
