EHV-901 : Hurricane Louver, Dual-module, 9-inch Depth
EHV-901 : Hurricane Louver, Dual-module, 9-inch Depth

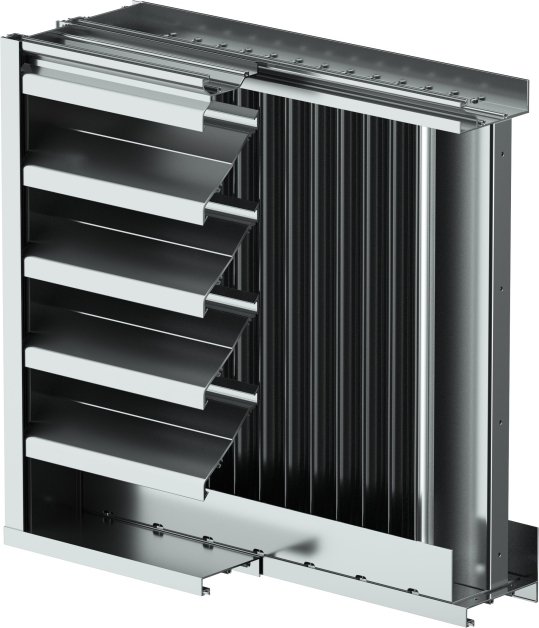

Model EHV-901 is a stationary, dual-module, extruded aluminum wind driven rain louver engineered to protect exterior wall intake and exhaust openings in severe weather environments. Its horizontal front blades and vertical rear blades provide advanced moisture separation and protection. The unit is AMCA 540 Listed for wind-borne debris impact and AMCA 550 Listed for High Velocity Wind Driven Rain, delivering high-performance, code-compliant protection for critical building envelope applications.
Product Highlights
| Blade Type |
Rain Resistant
|
|---|---|
| Frame Depth (Inches) |
9
|
| Certifications |
AMCA 500-L Water Penetration, Air Performance, and Wind-Driven Rain
AMCA 540 Test Method for Louvers Impacted by Wind Borne Debris (Basic Protection, Missile D and Enhanced Protection, Missile E)
AMCA 550 High Velocity Wind Driven Rain
|
| Free Area for 4' x 4' (%) |
54
|
| Free Area for 4' x 4' (ft square) |
8.66
|
| Material |
Aluminum
|
| Minimum Size |
12 in. W x 12 in. H
|
| Maximum Single Section Size |
60 in. W x 120 in. H
|
| Beginning Point of Water Penetration (ft/min) |
974
|
| Wind Load (PSF) |
25
|
Request Drawing
