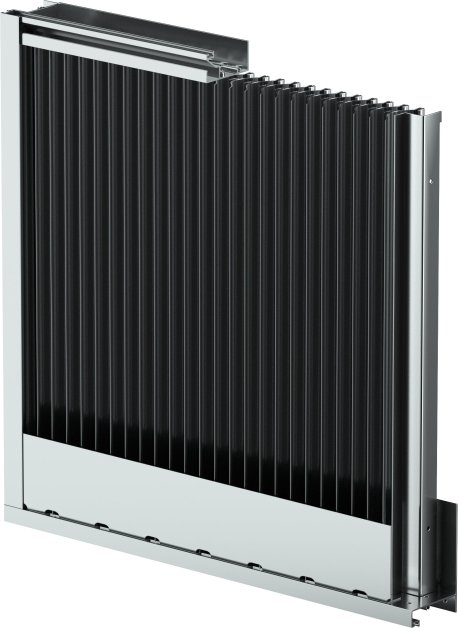

EVH-302 : Hurricane Louver, Vertical Blade, 3-inch Depth
EVH-302 : Hurricane Louver, Vertical Blade, 3-inch Depth
Model EVH-302 is designed to safeguard exterior wall intake and exhaust openings in applications where water penetration is a concern. Featuring a drainable head and vertical rain-resistant blades, it provides exceptional resistance to wind driven rain, supporting reliable moisture control and durable building envelope performance.
Product Highlights
| Blade Type |
Rain Resistant
|
|---|---|
| Frame Depth (Inches) |
3
|
| Certifications |
AMCA 500-L Water Penetration, Air Performance and Wind Driven Rain
AMCA 540 Test Method for Louvers Impacted by Wind Borne Debris (Basic Protection, Missile Level D)
AMCA 550 High Velocity Wind Driven Rain
|
| Free Area for 4' x 4' (%) |
51
|
| Free Area for 4' x 4' (ft square) |
8.13
|
| Material |
Aluminum
|
| Minimum Size |
12 in. W x 8 in. H
|
| Maximum Single Section Size |
60 in. W x 96 in. H
|
| Beginning Point of Water Penetration (ft/min) |
1,250
|
| Wind Load (PSF) |
25
|
Request Drawing
