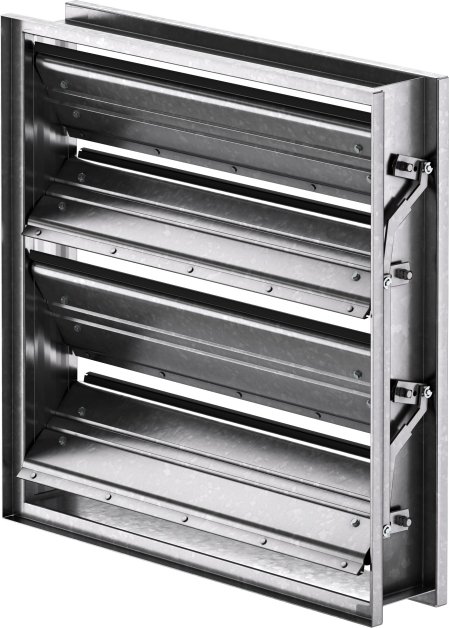

VCD-33 : Low Leakage Airfoil Control Damper
VCD-33 : Low Leakage Airfoil Control Damper
The VCD-33 is a low-leakage control damper featuring fabricated airfoil blades, engineered for efficient airflow and reduced pressure drop in medium to high pressure and velocity systems. Designed for versatility, it can be applied as either an automatic control damper or a manual balancing damper. The VCD-33 delivers dependable modulation and improved sealing performance, making it well-suited for demanding HVAC applications where performance and control accuracy are essential.
Product Highlights
| AMCA Leakage Class @ 1 in. wg. |
1A
|
|---|---|
| Application |
Control
|
| Blade Type |
Airfoil
|
| Frame Type |
Hat Channel
Reversed Flange
Single Flange
Double Flange
|
| Maximum Pressure Rating (in. wg.) |
8
|
| Maximum Velocity (fpm) |
4,000
|
