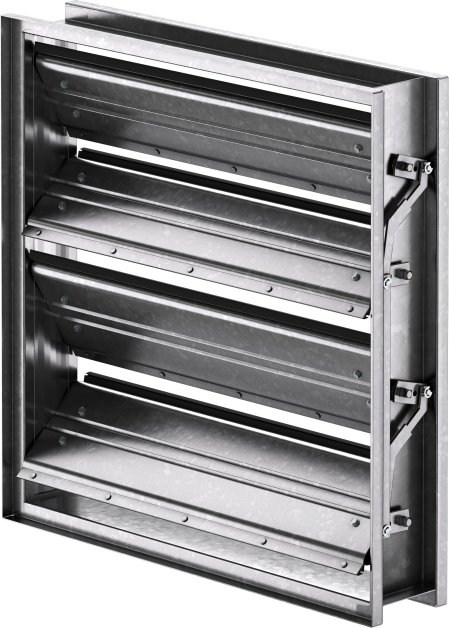

VCD-34 : Low Leakage Insulated Airfoil Control Damper
VCD-34 : Low Leakage Insulated Airfoil Control Damper
The VCD-34 is a low-leakage control damper featuring insulated, fabricated airfoil blades engineered to enhance thermal performance while delivering efficient airflow modulation. Designed for medium to high pressure and velocity systems, it performs reliably as either an automatic control damper or a manual balancing damper.
Product Highlights
| AMCA Leakage Class @ 1 in. wg. |
1A
|
|---|---|
| Application |
Control
|
| Blade Type |
Insulated Airfoil
|
| Frame Type |
Hat Channel
Reversed Flange
Single Flange
Double Flange
|
| Maximum Pressure Rating (in. wg.) |
8
|
| Maximum Velocity (fpm) |
4,000
|
