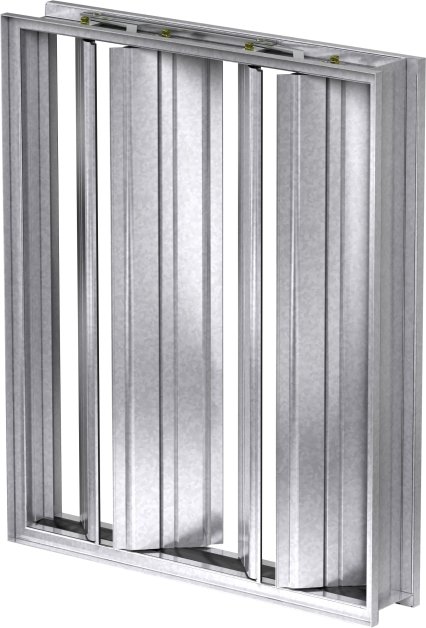

VCD-33V : Low Leakage Airfoil Control Damper, Vertical Blades
VCD-33V : Low Leakage Airfoil Control Damper, Vertical Blades
The VCD-33V is a low-leakage control damper featuring vertical fabricated airfoil blades, engineered for efficient airflow performance in medium to high pressure and velocity systems. Its vertical blade orientation supports specific duct configurations while maintaining strong sealing characteristics. Suitable for use as either an automatic control damper or a manual balancing damper, the VCD-33V delivers precise, dependable airflow modulation in demanding HVAC applications.
Product Highlights
| AMCA Leakage Class @ 1 in. wg. |
1A
|
|---|---|
| Application |
Control
|
| Blade Type |
Airfoil
|
| Frame Type |
Hat Channel
Reversed Flange
Single Flange
Double Flange
|
| Maximum Pressure Rating (in. wg.) |
8
|
| Maximum Velocity (fpm) |
4,000
|
