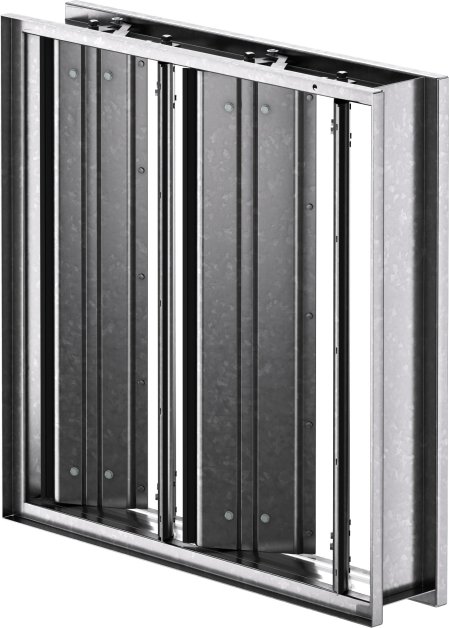

VCD-34V : Low Leakage Insulated Airfoil Control Damper, Vertical Blades
VCD-34V : Low Leakage Insulated Airfoil Control Damper, Vertical Blades
The VCD-34V is a low-leakage control damper featuring insulated, vertical fabricated airfoil blades engineered for efficient airflow and enhanced thermal performance. Designed for medium to high pressure and velocity systems, it delivers reliable modulation as either an automatic control damper or a manual balancing damper.
Product Highlights
| AMCA Leakage Class @ 1 in. wg. |
1A
|
|---|---|
| Application |
Control
|
| Blade Type |
Insulated Airfoil
|
| Frame Type |
Hat Channel
Reversed Flange
Single Flange
Double Flange
|
| Maximum Pressure Rating (in. wg.) |
8
|
| Maximum Velocity (fpm) |
4,000
|
Request Drawing
