VCD-40 : Low Leakage Extruded Airfoil Control Damper
VCD-40 : Low Leakage Extruded Airfoil Control Damper

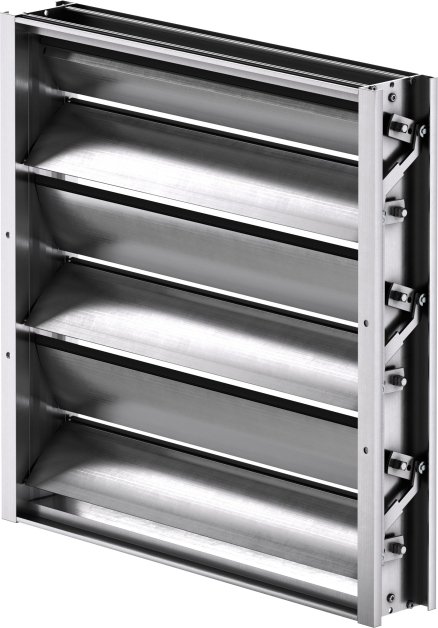

The VCD-40 is a low-leakage control damper engineered with blades fully contained within its 4-inch frame, eliminating blade overhang beyond the duct opening. This design allows for direct mounting to a louver, filter frame, or similar component without blade interference, simplifying installation and reducing coordination challenges. The VCD-40 delivers reliable airflow control while providing a clean, compact solution for tight or integrated assembly applications.
Product Highlights
| AMCA Leakage Class @ 1 in. wg. |
1A
|
|---|---|
| Application |
Control
|
| Blade Type |
Airfoil
|
| Frame Type |
Hat Channel
Reversed Flange
Single Flange
|
| Maximum Pressure Rating (in. wg.) |
6
|
| Maximum Velocity (fpm) |
6,000
|
